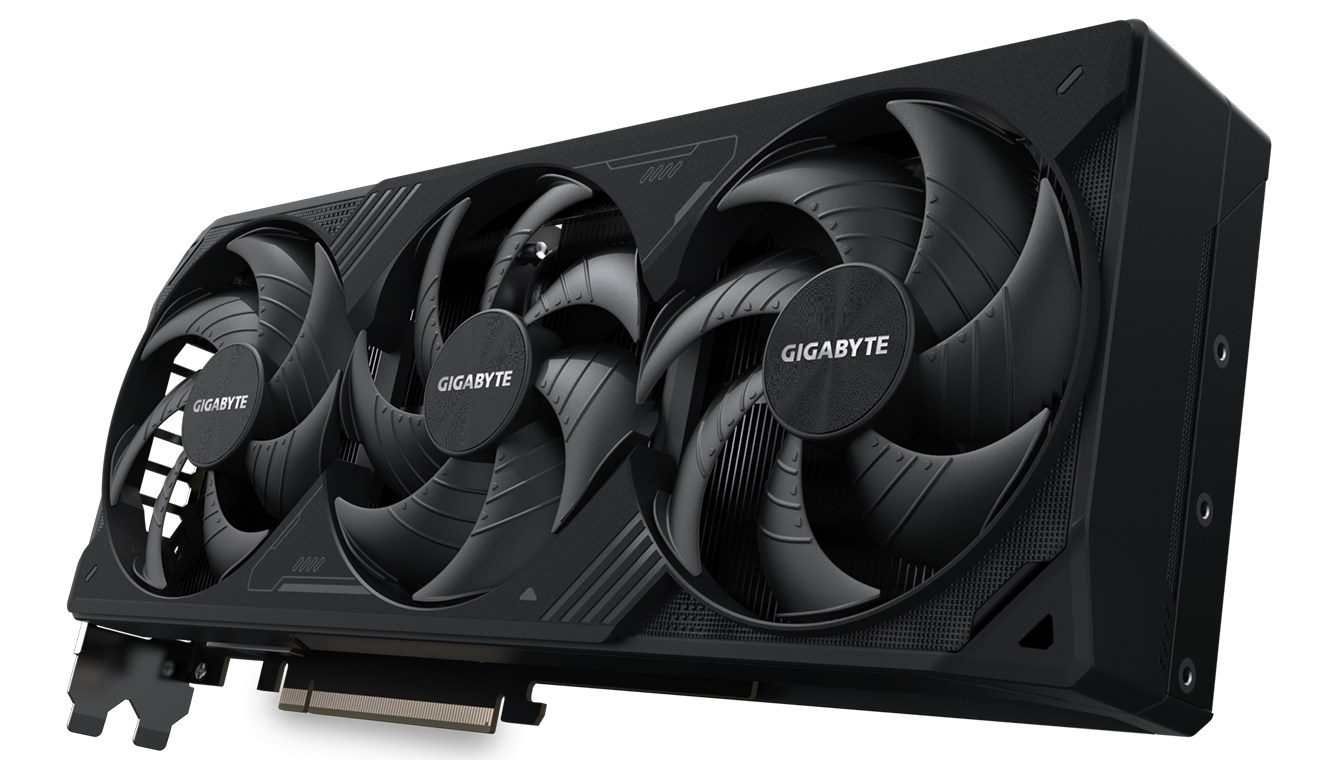

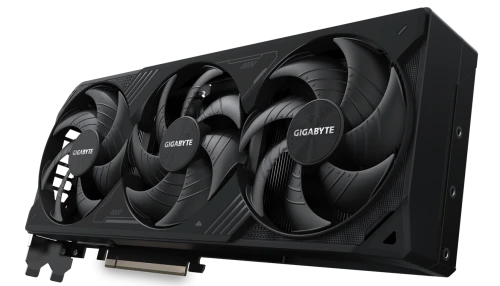

Gigabyte GeForce RTX 5080 WINDFORCE OC 16G Graphics Card

Name: Gigabyte GeForce RTX 5080 WINDFORCE OC 16G Graphics Card
Brand: GigaByte
SKU: GV-N5080WF3OC-16GD
Price: 307230.00 NPR
Availability: InStock

In stock No reviews yet

Rs307,230 ~~Rs313,500~~ दशैं अफरRs6,270 OFF

NVIDIA GeForce RTX 5080Graphics Processor

2670 MHzCore Clock

2617 MHzReference Clock

16GB GDDR7Memory

Order on WhatsApp

Compare models

Delivery options at checkout

Ask about warranty Need compatibility advice?

About this product

The Gigabyte GeForce RTX 5080 WINDFORCE OC SFF 16G is a high-performance graphics card built on NVIDIA's Blackwell architecture, designed for demanding gaming, content creation, AI applications and other GPU-intensive workloads. It combines the GeForce RTX 5080 GPU with 16GB of GDDR7 memory, a 256-bit memory interface and 10,752 CUDA cores.

This WINDFORCE OC model features a factory-overclocked 2670 MHz core clock, compared with the 2617 MHz reference clock. The 30 Gbps GDDR7 memory and PCI Express 5.0 interface provide high-bandwidth connectivity for modern gaming PCs and professional GPU workloads.

Gigabyte equips the card with its WINDFORCE cooling system, incorporating Hawk fans and server-grade thermal conductive gel. The card also includes Dual BIOS with Performance and Silent modes, allowing users to select the operating profile according to their system requirements.

The RTX 5080 WINDFORCE OC SFF 16G supports NVIDIA's fifth-generation Tensor Cores and fourth-generation Ray Tracing Cores, along with DLSS technologies for supported applications and games. Its SFF-ready design and reinforced structure make it suitable for compact high-performance PC builds as well as larger gaming and workstation systems.

For display connectivity, the card provides three DisplayPort 2.1b outputs and one HDMI 2.1b output, supporting up to four displays and resolutions up to 7680 × 4320. Gigabyte recommends an 850W power supply, with the graphics card using a single 16-pin power connector.

Key features

NVIDIA GeForce RTX 5080 graphics processor
NVIDIA Blackwell architecture
16GB GDDR7 graphics memory
256-bit memory interface
30 Gbps memory speed
Factory-overclocked core clock up to 2670 MHz
10,752 CUDA cores
PCI Express 5.0 interface
WINDFORCE 3X cooling system
Hawk fans and server-grade thermal conductive gel
Dual BIOS with Performance and Silent modes
NVIDIA SFF-ready design
Reinforced metal backplate
Versatile VGA holder
Fifth-generation Tensor Cores
Fourth-generation Ray Tracing Cores
Supports DLSS 4 and AI-enhanced rendering technologies
3 × DisplayPort 2.1b and 1 × HDMI 2.1b
Supports up to 4 displays
Maximum digital resolution up to 7680 × 4320
Recommended power supply: 850W
1 × 16-pin power connector

Specifications at a glance

Brand	Gigabyte
Product Series	WINDFORCE OC SFF
Graphics Processor	NVIDIA GeForce RTX 5080
Architecture	NVIDIA Blackwell
Model	GV-N5080WF3OC-16GD
CUDA Cores	10,752
Core Clock	2670 MHz
Reference Clock	2617 MHz

View all specifications

Specification	Details
Brand	Gigabyte
Product Series	WINDFORCE OC SFF
Graphics Processor	NVIDIA GeForce RTX 5080
Architecture	NVIDIA Blackwell
Model	GV-N5080WF3OC-16GD
CUDA Cores	10,752
Core Clock	2670 MHz
Reference Clock	2617 MHz
Memory	16GB GDDR7
Memory Speed	30 Gbps
Memory Interface	256-bit
Bus Interface	PCI Express 5.0
Cooling System	GIGABYTE WINDFORCE 3X
Fans	3 × Hawk Fans
Ray Tracing Cores	4th Generation
Tensor Cores	5th Generation
DLSS	DLSS 4
BIOS	Dual BIOS: Performance / Silent
SFF Ready	Yes
DisplayPort	3 × DisplayPort 2.1b
HDMI	1 × HDMI 2.1b
Multi-View	Up to 4 displays
Maximum Digital Resolution	7680 × 4320
Power Connector	1 × 16-pin
Recommended PSU	850W
Card Dimensions	304 × 126 × 50 mm
Slot Size	2.5-slot
DirectX	DirectX 12 API
OpenGL	OpenGL 4.6
PCB Form	ATX
